F870 GPS Wireless Dog Fence – Dual-Frequency GNSS, Draw Boundaries on App
The F870 GPS Wireless Dog Fence features app-based boundary drawing and dual-frequency GNSS positioning to reduce positioning drift for more reliable boundary decisions. Once set up, it operates independently offline. Its privacy-focused architecture is designed to support GDPR compliance and protect user data.
Technology
App-Control Fence with No Subscription
Range
Custom Circular or Polygon Boundary; Covers 3/4 Acre or More
Operating Runtime
72 Hours
Available Outputs
Tone / Vibration / Static
11-100 sets
$40
101-499 sets
$37
500-999 sets
$36
Best-Fit Scenarios
How it works & safety
How It Works

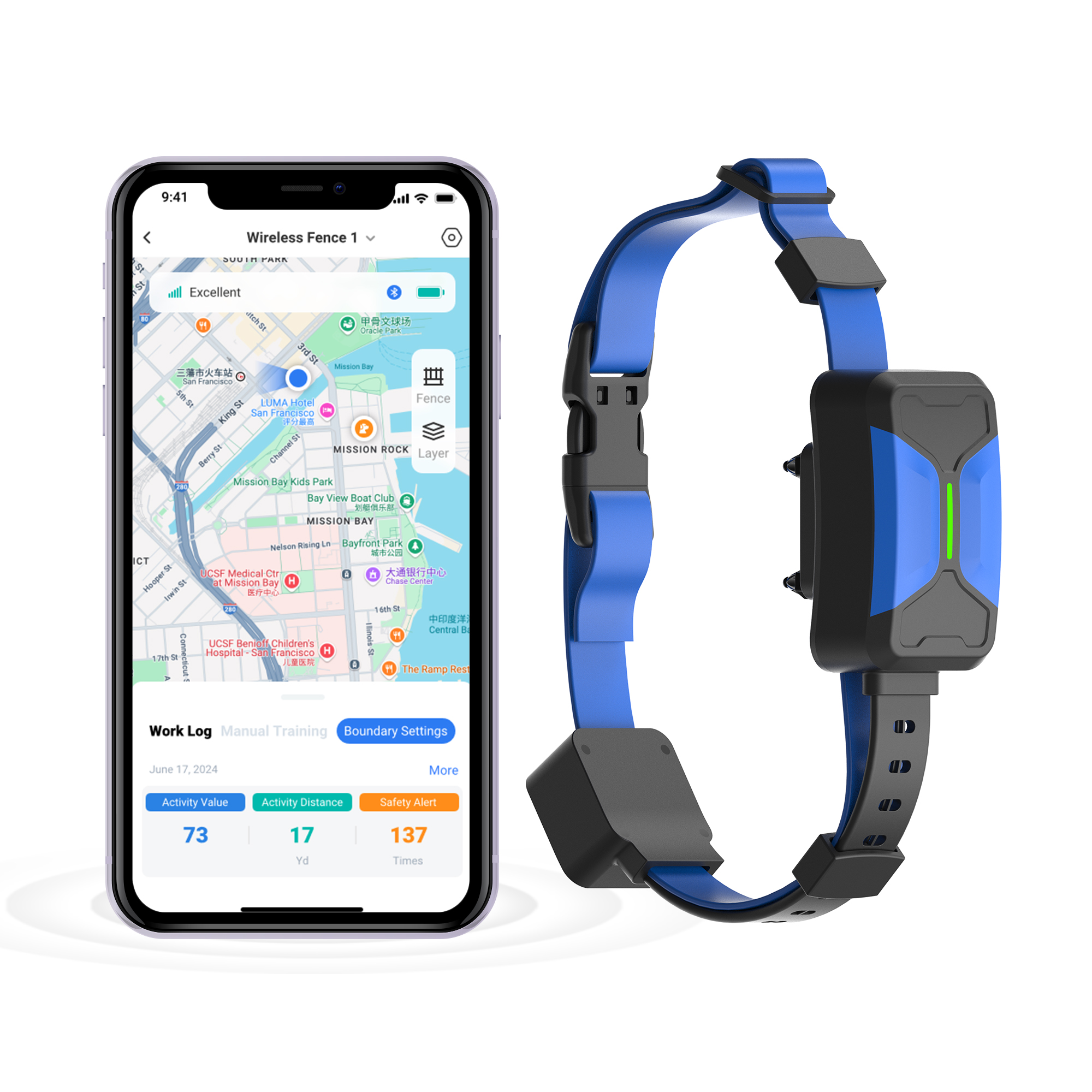

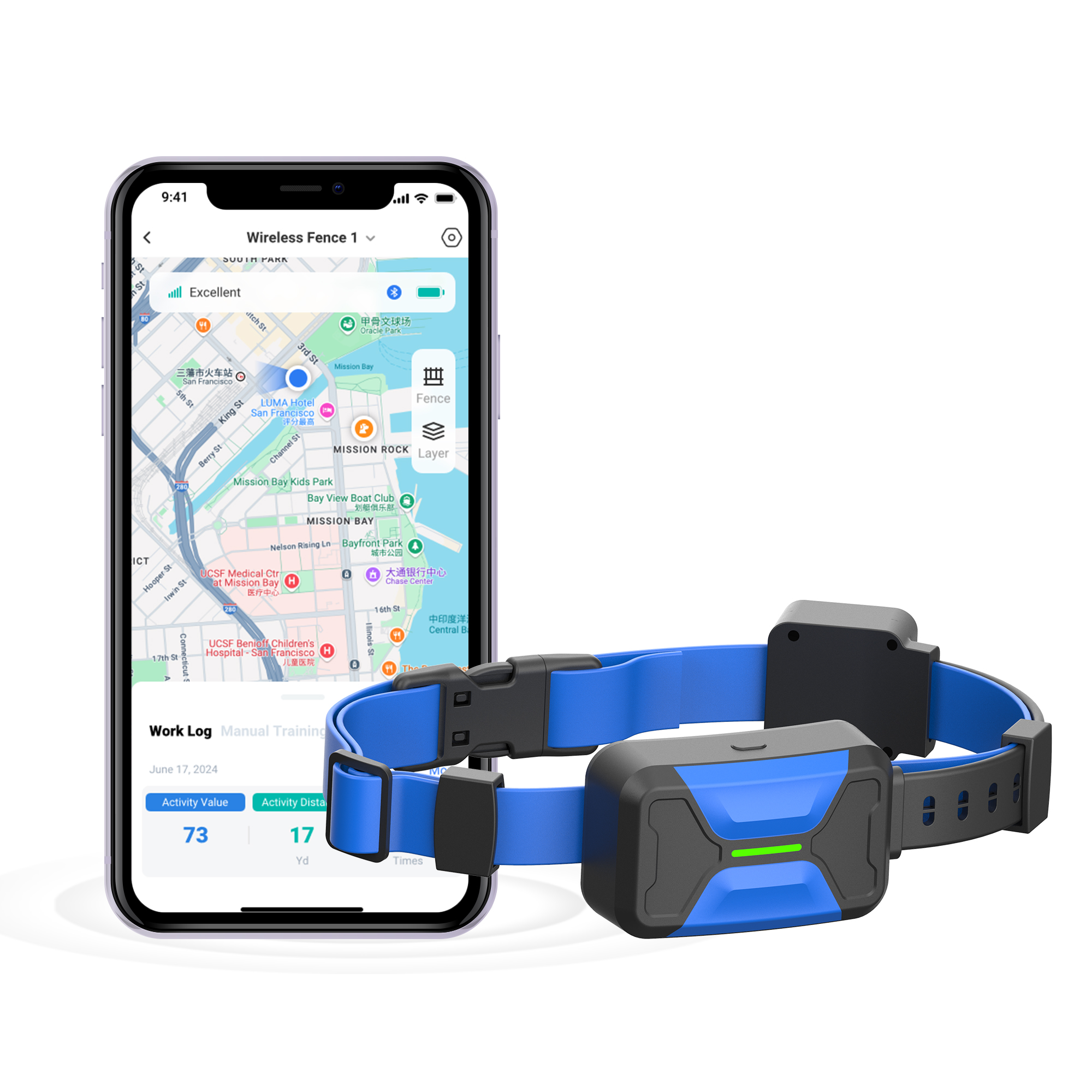

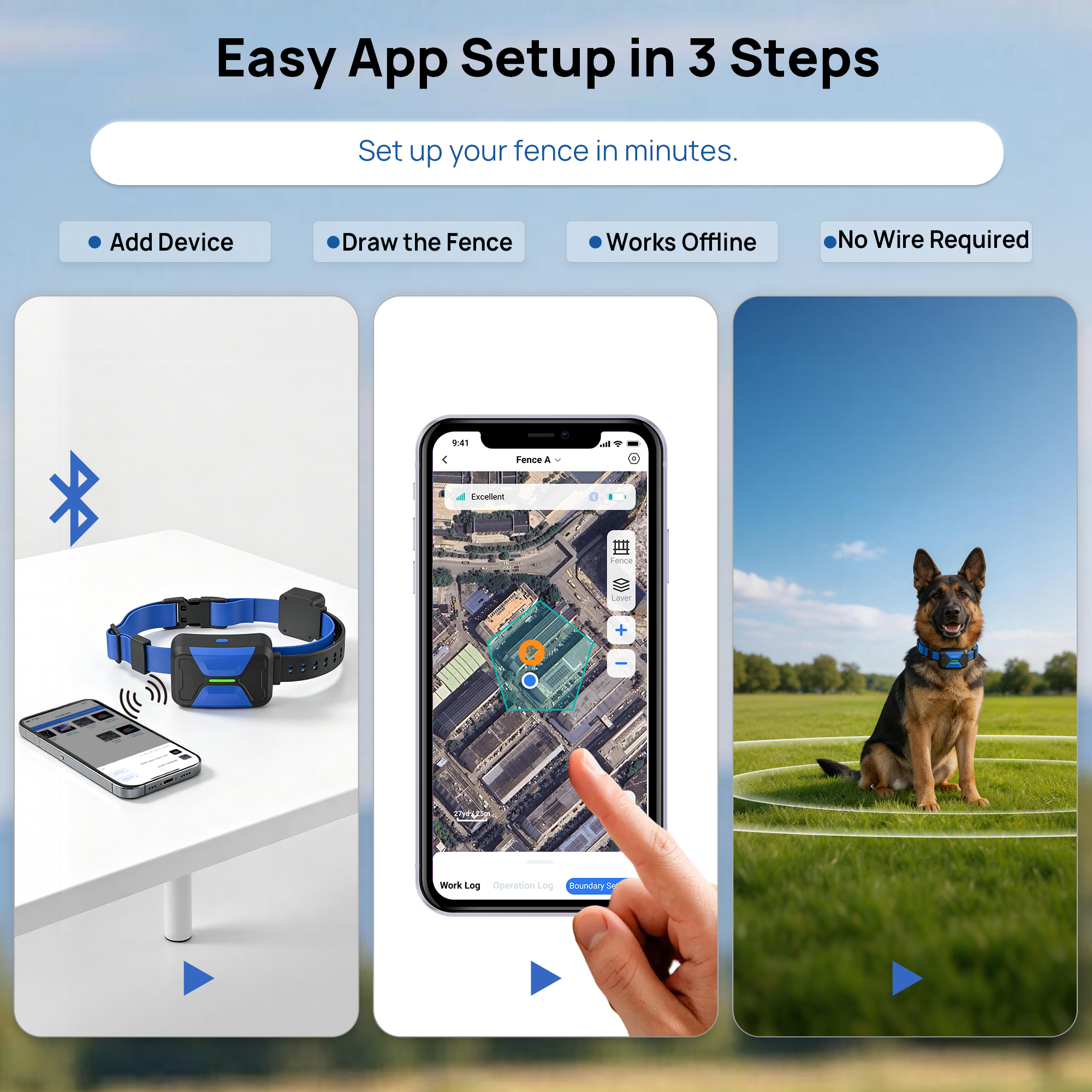

F870 is an app-managed GPS wireless dog fence featuring dual-frequency GNSS positioning to help reduce positioning drift for more reliable boundary decisions. Open the app, draw a circular or polygonal boundary on the map, and sync it to the collar. Once setup is complete, the device operates independently offline, maintaining the virtual fence without requiring a continuous phone connection. Built with a privacy-focused architecture designed to support GDPR compliance, the F870 helps protect user data while providing reliable pet containment.
Key product advantages

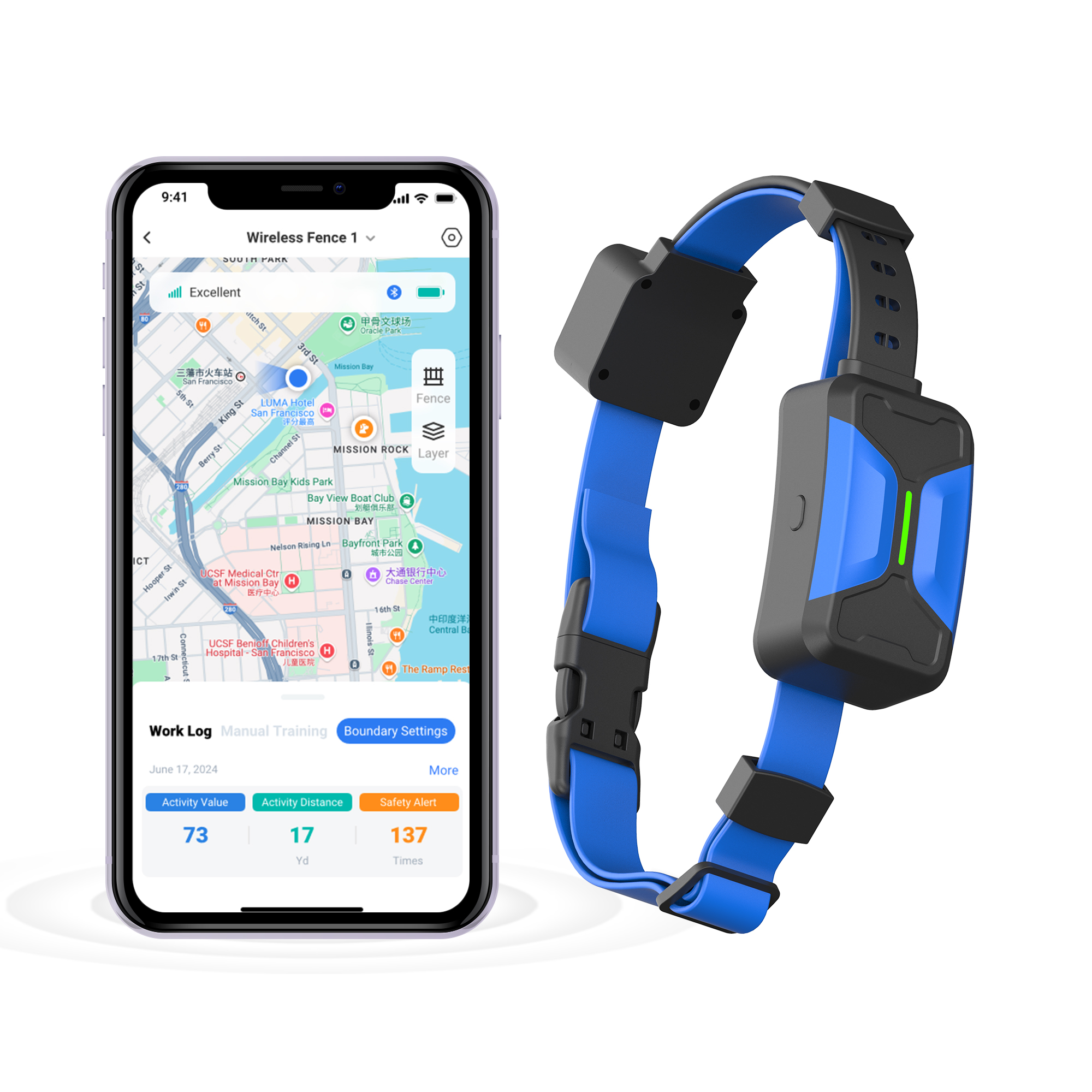

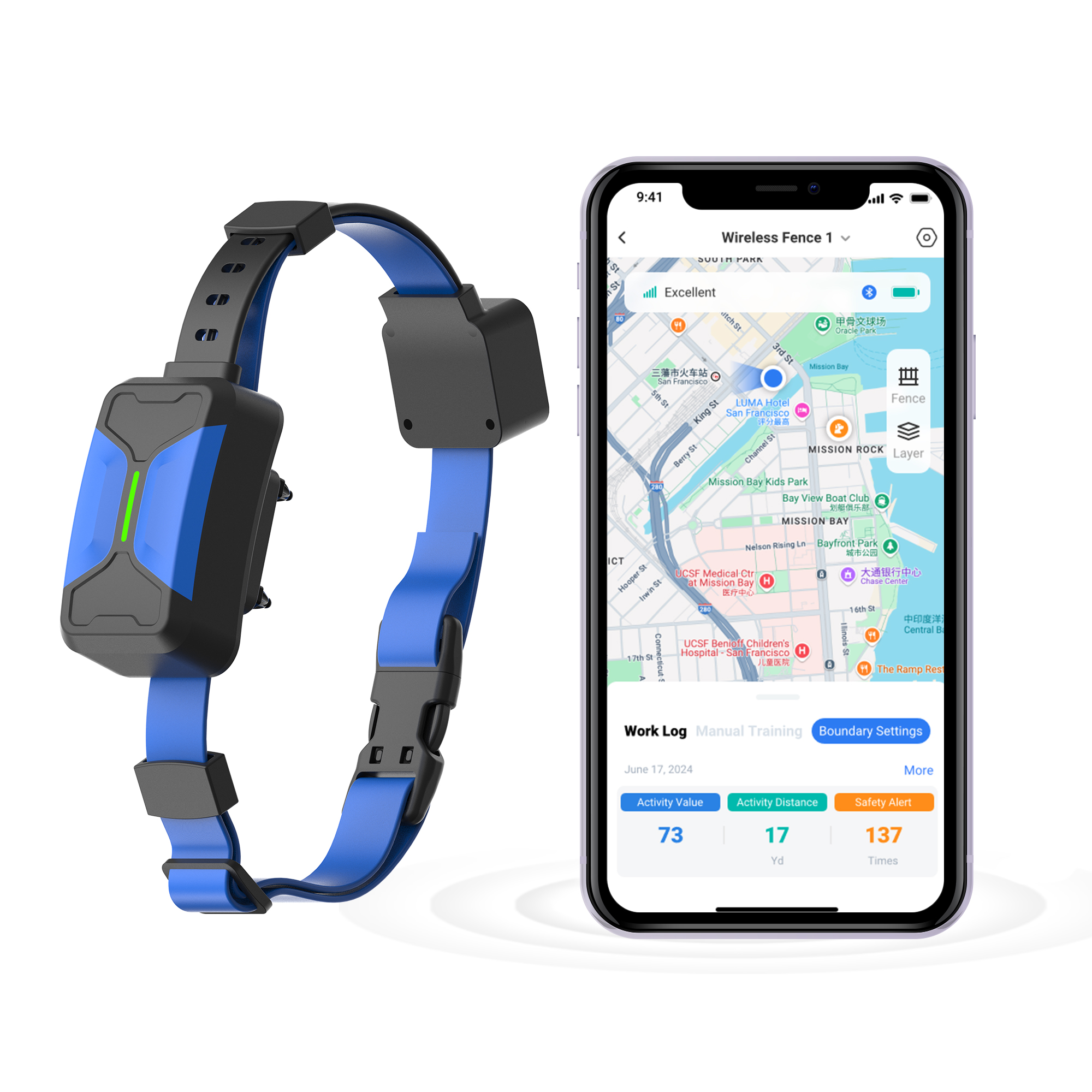

Set the Fence in the App

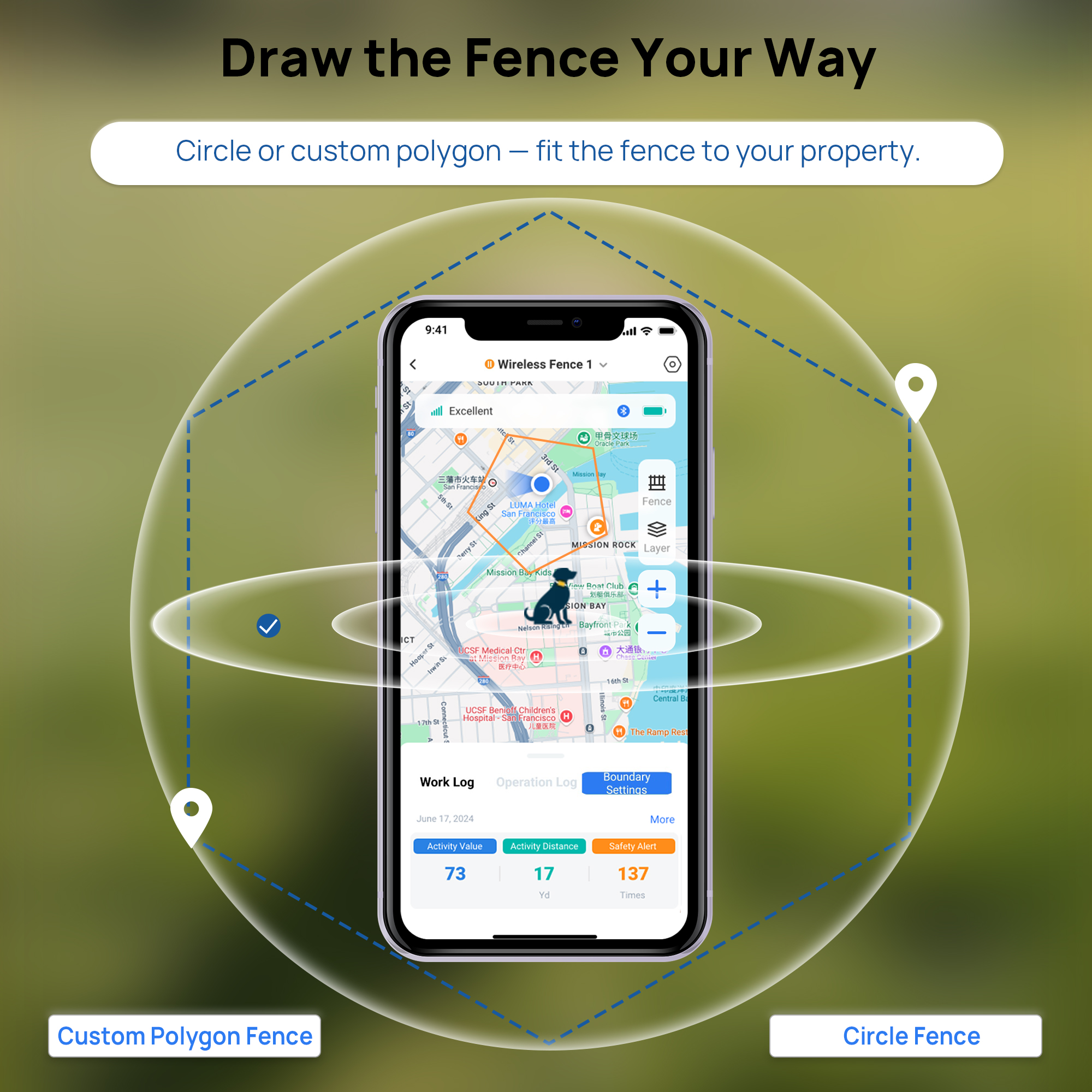

Create circular or polygonal boundaries on the map without burying wire or installing a separate transmitter.
Keep Dogs In or Out
Use Stay Inside to contain a dog, or Keep Outside to block access to gardens, pools, driveways, and other areas.
Works Without the Phone Connected
After setup, the collar uses GPS, BDS, and Galileo to run the saved fence even when Bluetooth is disconnected.
Up to 72 Hours per Charge
The 1500 mAh rechargeable battery provides up to 72 hours of use, while the IP67 design supports outdoor conditions.
Technical Specifications
Performance
Positioning Technology
GPS / BDS / Galileo
Boundary Setup Method
Mobile app; Bluetooth synchronization
Boundary Shapes
Circular / polygonal / custom-drawn
Boundary Range
Coverage of 3/4 Acre or More
Positioning Accuracy
Environment-dependent; no false corrections indoors
Suitable Dog Size
Medium and Large Dogs
Modes & Safety
Operating Modes
Progressive / custom; fixed mode pending confirmation
Available Outputs
Tone / vibration / static
Intensity Adjustment

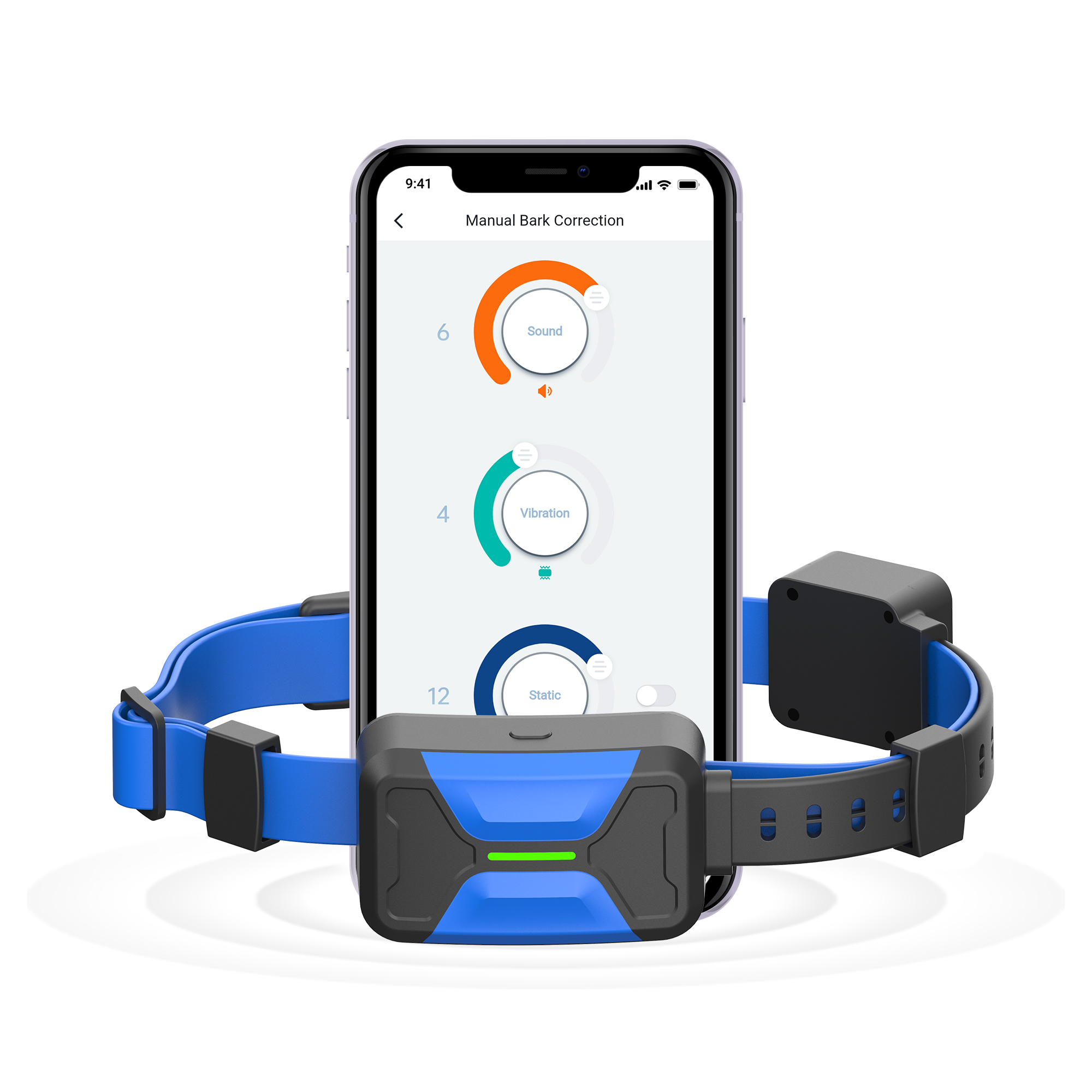

3 tone options; vibration 1–5; static 1–5

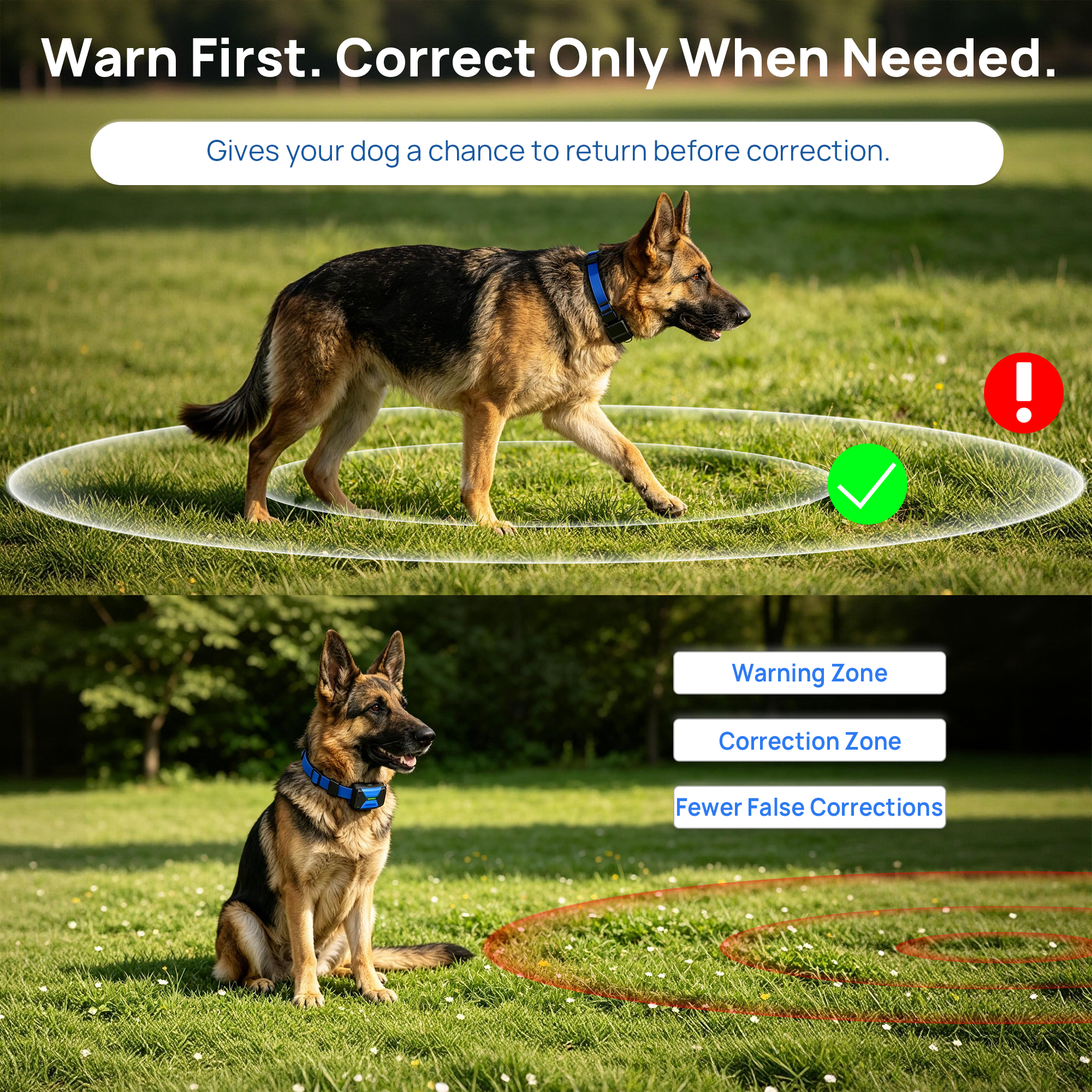

Boundary Zone Logic
3 yd tone-only warning zone; correction zone beyond boundary
Correction Sequence
2 rounds; 1-minute protection; stops when returning toward the safe zone

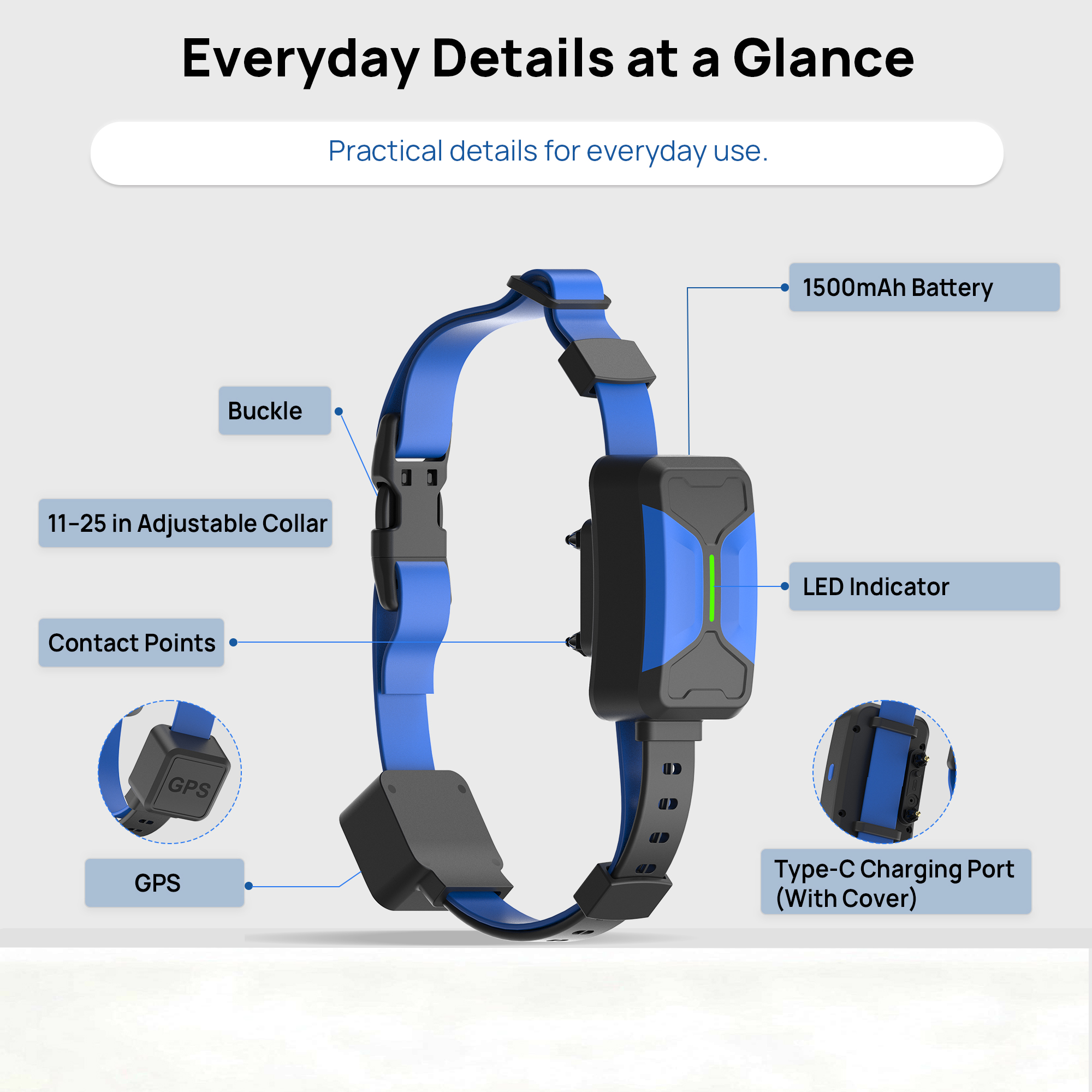

Power & Durability
Battery Capacity
Built-in, non-removable 1500 mAh lithium battery.
Operating Runtime
Up to 72 hours per full charge under the documented 4–8-hour activity condition.
Standby Time
Up to 662 days when stationary in sleep mode.
Charging
USB Type-C; 5 V / 1 A input; approximately 3-3.5 hours.
Water Resistance
IP67.
Physical
Device Dimensions
76 × 47 × 37 mm, excluding the collar strap.
Device Weight
180 g.
Housing Material
ABS.
Standard Product Color
Black; alternative colors are documented as customizable.
Collar Strap Length and Material
11–26 inches (Adjustable), Black PVC.
B2B Supply Information
Package & Logistics
Color Box Dimensions: 180 × 176 × 61 mm.
Packaged Unit Weight: 575 g.
Master Carton Dimensions: 55 × 37.4 × 39.7 cm; 36 units per carton.
Master Carton Gross Weight: 22.2 kg.
OEM / ODM Options
Collar Strap Color: Orange and blue. Custom strap colors are available. Logo, Packaging & Product Customization: Logo branding, custom packaging, and manual-language options are available for qualified orders. App UI, firmware, and functional customization are evaluated according to the product model, order volume, and engineering feasibility.
Launch Faster with Ready-to-Use Content
Buyer FAQ
Does the F870 require an internet connection or a subscription?
No. After the initial setup and boundary synchronization, the F870 operates independently without requiring a continuous internet connection, cellular service, or a monthly subscription.
What training modes does the F870 support?
The F870 supports three independent correction modes: tone, vibration, and static correction. Static correction offers 16 adjustable levels, with progressive and customizable correction options to suit different training needs.
Can I customize the shape and size of the virtual fence?
Yes. You can draw circular or polygonal boundaries in the app to suit your property and outdoor environment. The coverage starts a 3/4 acre and can extend to larger open areas. The app also supports two boundary modes: Stay Inside and Keep Outside.
How does the F870 GPS Wireless Dog Fence work?
The F870 uses dual-frequency GNSS positioning (L1 + L5) to help reduce positioning drift and improve boundary reliability. Draw a virtual boundary in the app, sync it to the collar via Bluetooth, and the collar will independently detect boundary crossings and provide alerts.

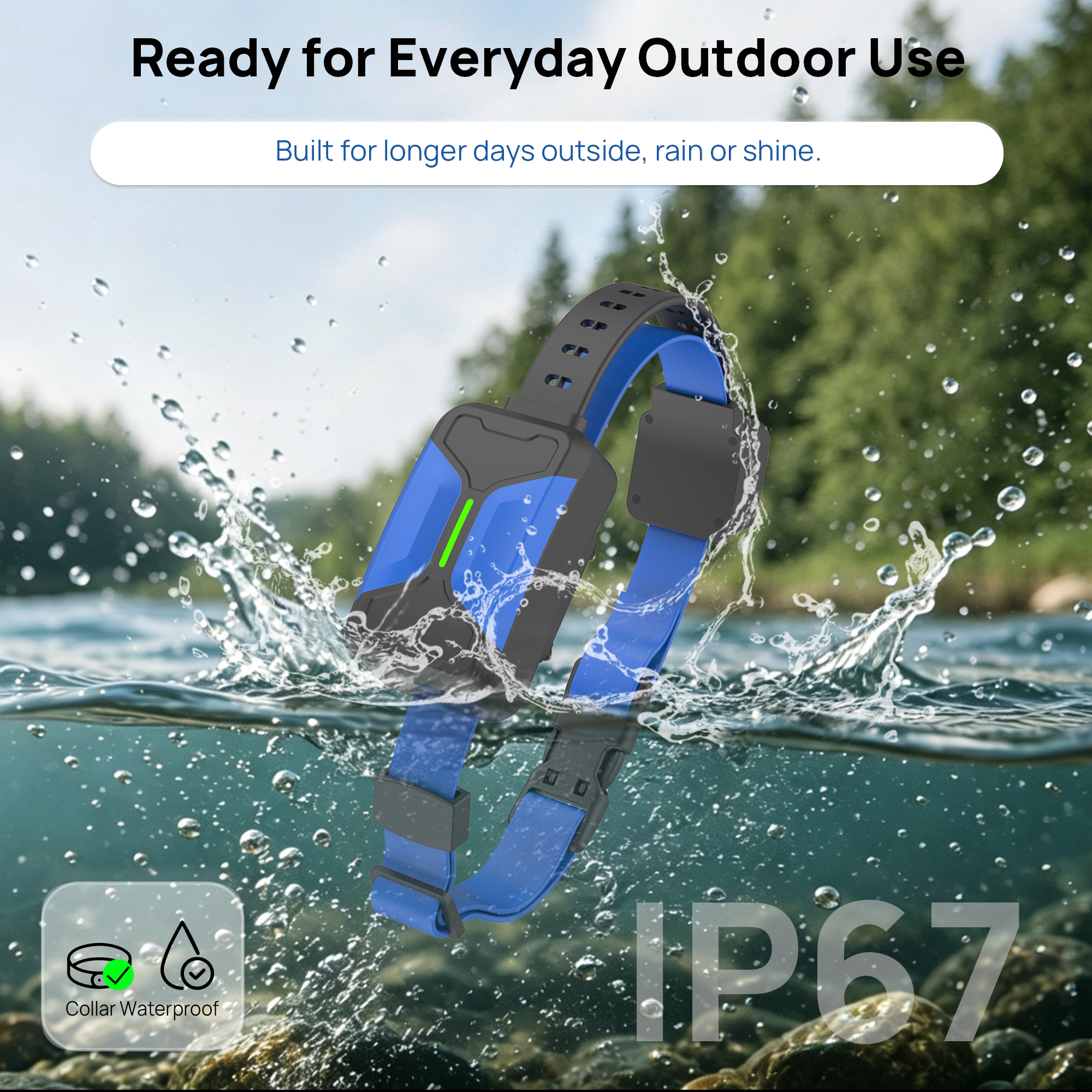

Is the F870 waterproof?
The F870 has an IP67-rated design for water and dust resistance, making it suitable for outdoor use in conditions such as rain and muddy environments. Follow the product manual for proper care and use.
