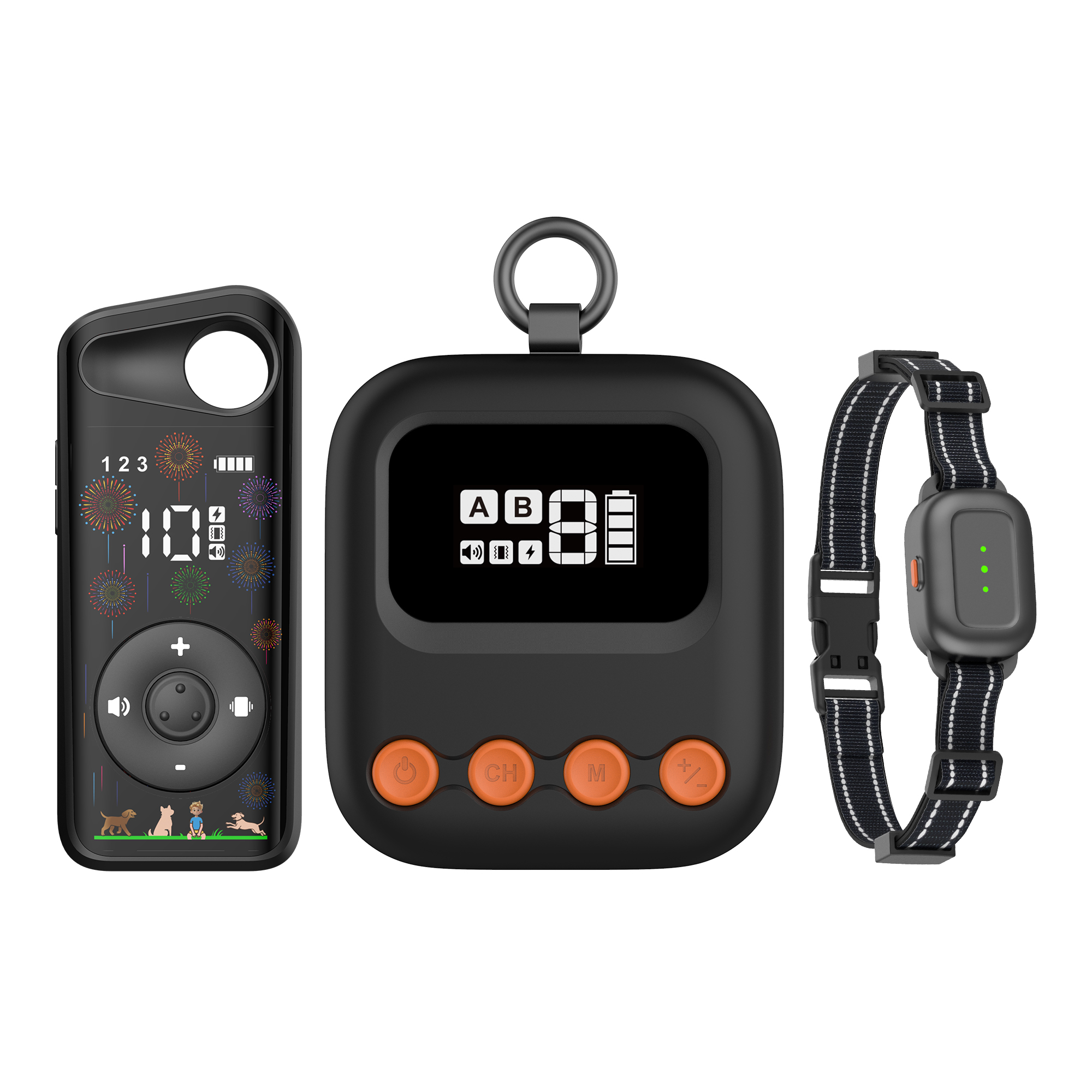

F620 Indoor & Outdoor Pet Fence – One System, Multiple Protection Zones
The F620 provides flexible indoor and outdoor space protection, supporting multiple receivers to create protection points in different areas and manage multiple pets with ease.
Technology
6–7 kHz LF + 2.4 GHz Dual-Frequency Wireless
Range
8 Adjustable Boundary Levels
Operating Runtime
Transmitter Approx. 72 Hours / Receiver Approx. 144 Hours
Available Outputs
Tone / Vibration / Static
11-100 sets
$36
101-499 sets
$34
500-999 sets
$33
Best-Fit Scenarios
How it works & safety
How It Works
The F620 is an indoor and outdoor pet barrier system that uses dual-frequency technology (6–7 kHz LF + 2.4 GHz UHF) to create invisible pet-free zones without buried wires or complicated installation. Indoors, choose from Levels 1–3 to fine-tune the boundary radius from 2.3 to 5 ft. For outdoor use, adjust the radius from 2 to 66 ft to protect larger areas such as gardens, patios, and plants. When a pet enters a designated zone, the receiver collar delivers the selected warning or correction. The F620 also features a built-in remote trainer with three training modes and a control range of up to 100 meters. Add more transmitters to protect multiple areas and more receiver collars for additional pets—no pairing required. Both the transmitter and receiver are IP67-rated for water and dust resistance.
Key product advantages
Dual-Frequency Signal
The system combines 6–7 kHz LF and 2.4 GHz signals for stable boundary detection with less Wi-Fi and Bluetooth interference.

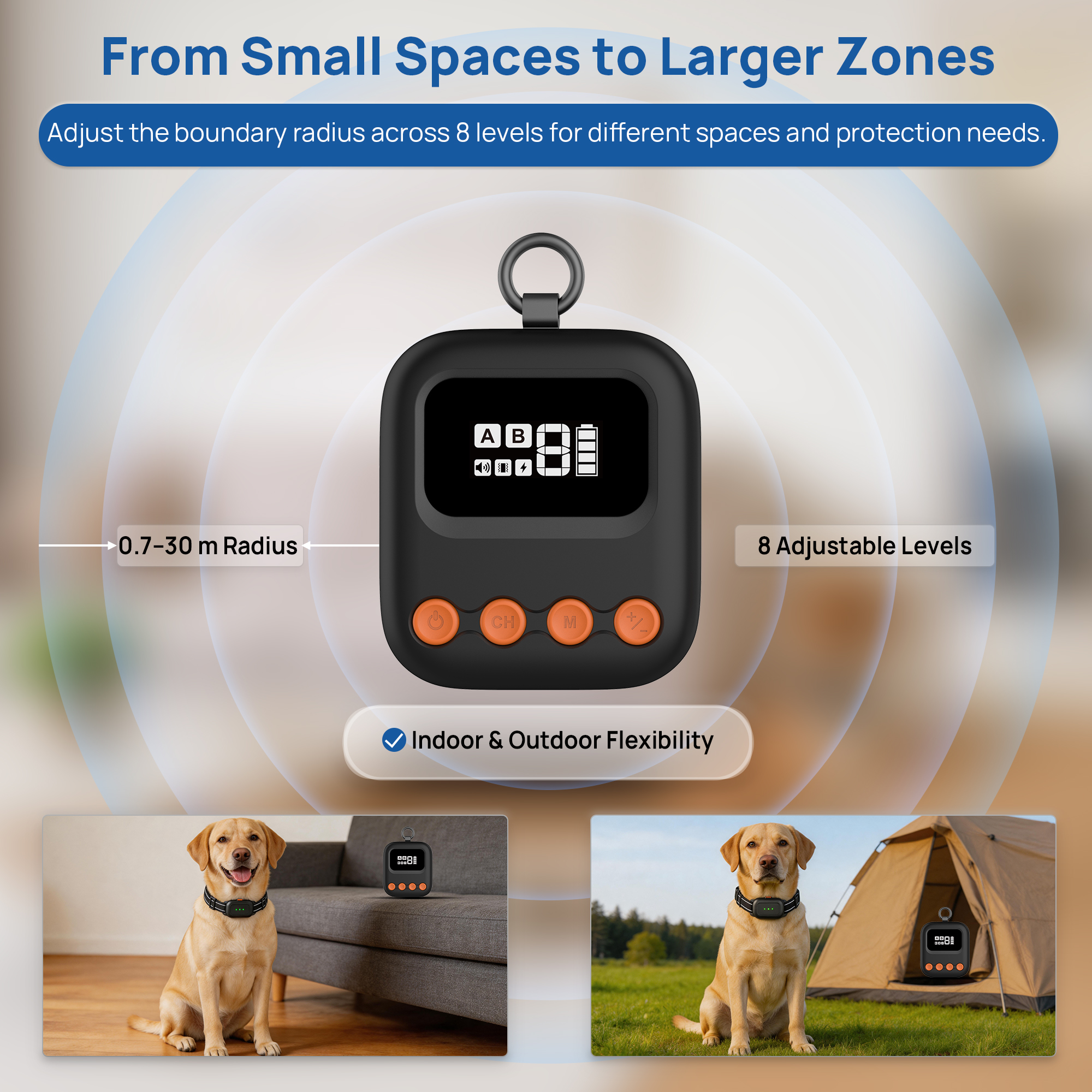

8 Boundary Distance Levels
Eight distance settings help users create no-go areas around rooms, furniture, doors, pools, gardens, and other spaces.

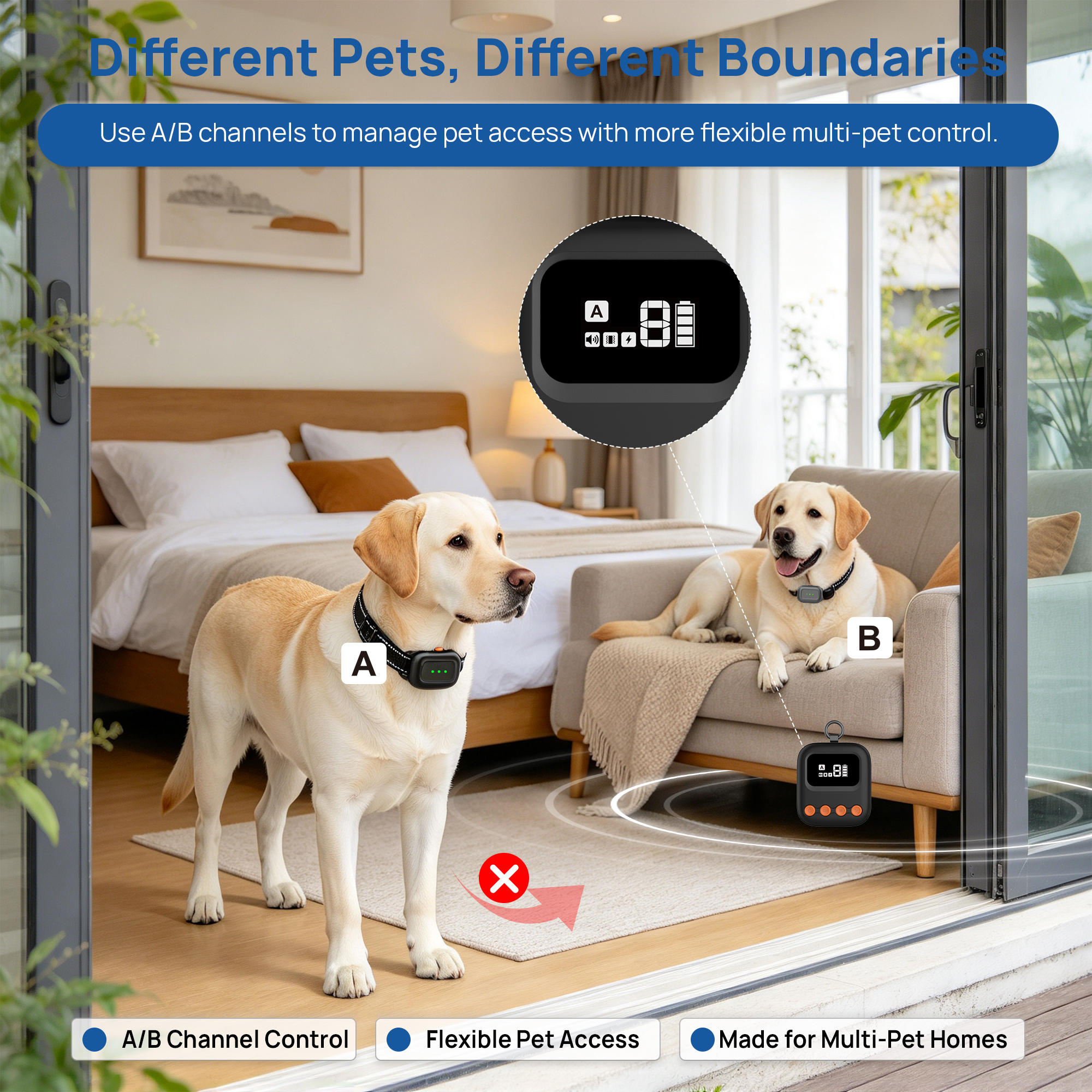

One Transmitter, Multiple Collars-No Pairing Needed
A single transmitter can work with multiple receivers and supports A, B, and AB channels for separate pet management. Full setup in under 10 minutes.
3-Level Progressive Correction
When pet approaches the boundary, the receiver triggers audio, vibration, and static stimulation in sequence. Built-in correction protocol runs two cycles then automatically enters silent protection mode — gentle, effective, and safe.
Technical Specifications
Performance
Signal Technology
6–7 kHz LF + 2.4 GHz UHF
Boundary Setup Method
Transmitter-based level adjustment
Boundary Configuration
Keep-out proximity zone
Boundary Distance Adjustment
8 levels
Supported Receivers
Multiple receivers; A/B/AB channel control
Suitable Pet Size
Small and Medium Dogs and Cats
Modes & Safety
Operating Function
Keep-Out Boundary
Operating Modes
Vibration Mode / Static Mode
Available Outputs
Tone / Vibration / Static
Intensity Adjustment
3 progressive levels; non-adjustable
Boundary Zone Logic
Correction triggered near the keep-out boundary
Correction Sequence
5 sec correction → 3 sec pause × 3; two cycles → 1 min protection reminder → Mute after 5 min

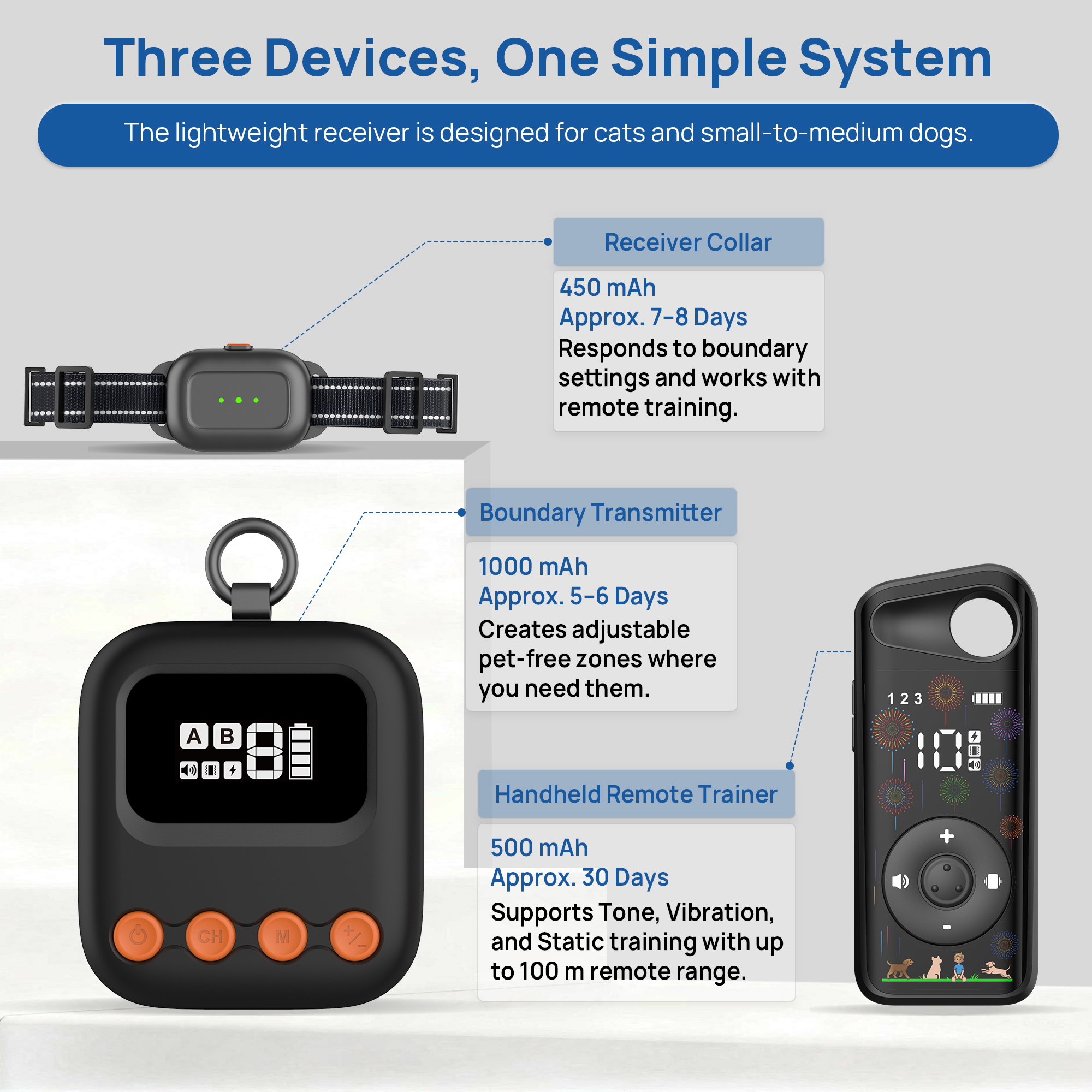

Power & Durability
Battery Capacity
Transmitter 1000 mAh; Receiver 450 mAh; Training Remote: 500 mAh
Battery Runtime
Transmitter Approx. 72 Hours / Receiver Approx. 144 Hours
Charging
USB Type-C; 5 V/1 A
Operating Temperature
−20°C to 60°C
Water Resistance

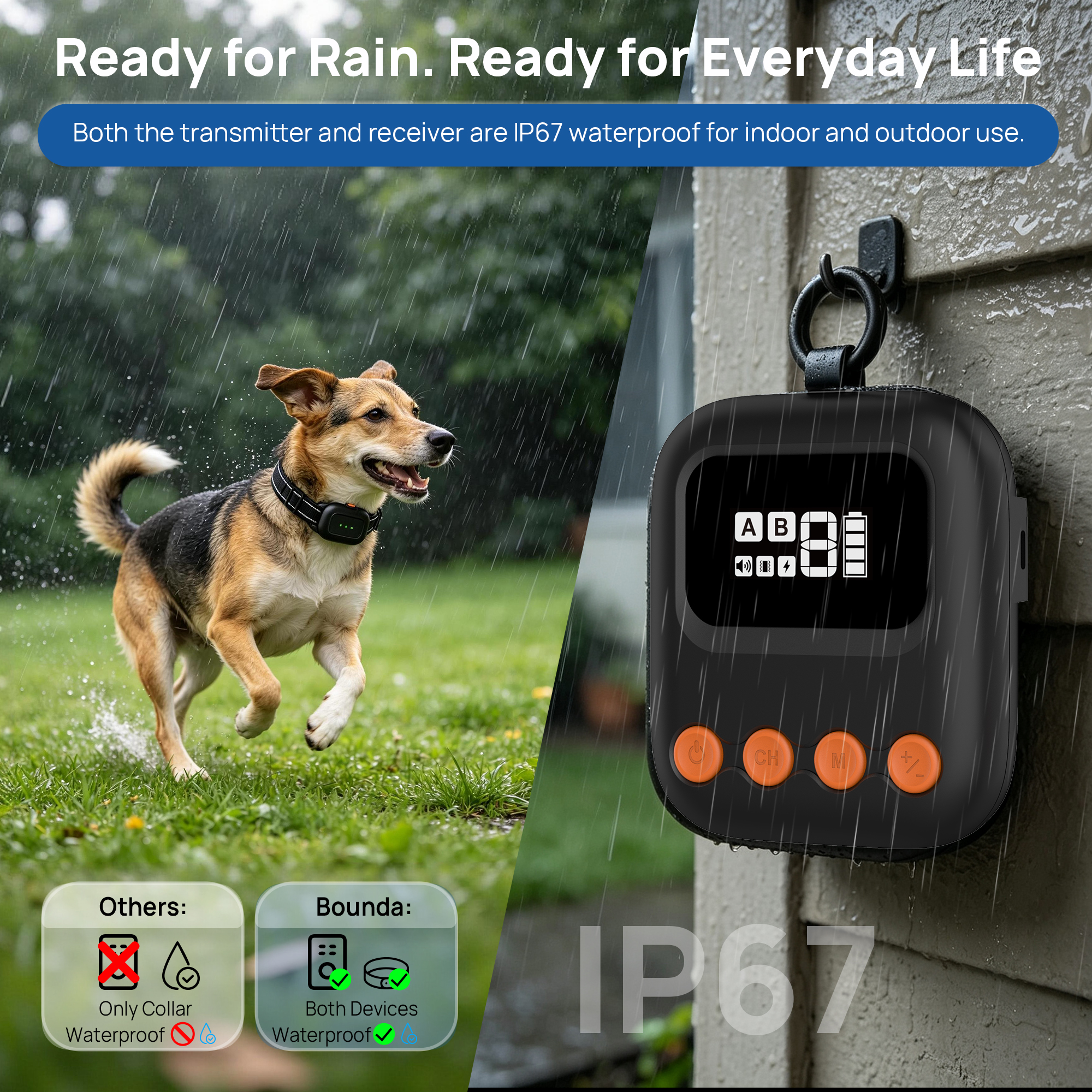

Transmitter and Receiver IP67
Physical
Device Dimensions
Transmitter 90 × 100 × 25 mm; Receiver 74 × 43.9 × 35.2 mm; Training Remote 120 × 51 × 20 mm
Device Weight
Transmitter 128 g; Receiver 92 g; Training Remote 66 g
Housing Material
ABS + PC
Standard Product Color
Black
Collar Strap Length and Material
Adjustable 7.8–22 inch; Nylon
B2B Supply Information
Package & Logistics
Color Box Dimensions: 240 × 150 × 75 mm.
Packaged Unit Weight: 646 g.
Master Carton Dimensions: 505 × 468 × 338 mm; 24 sets per carton.
Master Carton Gross Weight: 16.5 kg.
OEM / ODM Options
Collar Strap Color: Black. Custom strap colors are available.Logo, Packaging & Product Customization: Logo branding, custom packaging, and manual-language options are available for qualified orders. App UI, firmware, and functional customization are evaluated according to the product model, order volume, and engineering feasibility.
Launch Faster with Ready-to-Use Content
Buyer FAQ
How does F620 work?
The F620 uses dual-frequency technology combining 6–7 kHz low frequency (LF) and 2.4 GHz UHF to create invisible pet-free zones without buried wires. Place the transmitter near the area you want to protect, adjust the boundary range, and use the receiver collar to help keep your pet away from designated areas.
Can I use the F620 both indoors and outdoors?
Yes. The F620 is designed for both indoor and outdoor use. Indoors, it can help protect kitchens, dining tables, furniture, bedrooms, and other restricted spaces. Outdoors, it can define boundaries around gardens, plants, patios, and other areas you want your pet to avoid.
Can I protect multiple areas at the same time?
Yes. You can add transmitters to establish boundaries in multiple locations, such as the kitchen, sofa, pet feeding area, garden, or around a fish tank. This lets you create a flexible network of protected zones throughout your home and outdoor spaces.
Does the F620 have a built-in dog training function?
Yes. In addition to pet barrier functionality, the F620 includes a remote training function with three selectable training modes and an effective operating range of up to 100 meters under suitable conditions.
What warning and correction modes does the F620 support?
The F620 receiver collar supports vibration and static correction modes. You can select the appropriate mode and adjust the forbidden-zone level according to your pet’s needs and the specific environment. Test the settings carefully to find a suitable level before regular use.
